Simplex Slitter Rewinders

Advanced Slitter Rewinder of A2Z filtrations.

Designed for undertaking slitting of large size filter paper reels up to a maximum width of 2.5 mtr
Convenient for those manufacturers who often have to procure their filter paper in large width Jumbo reels.
Avoids wastage and helps optimize stock levels as paper is slit to specific sizes just prior to production and the pleating process as per customer’s specific production program.

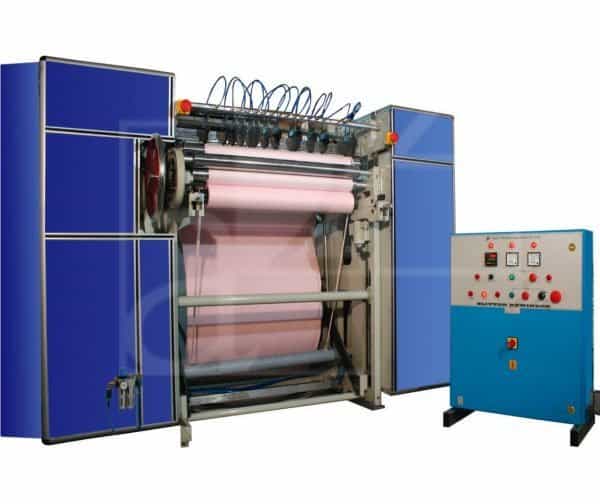

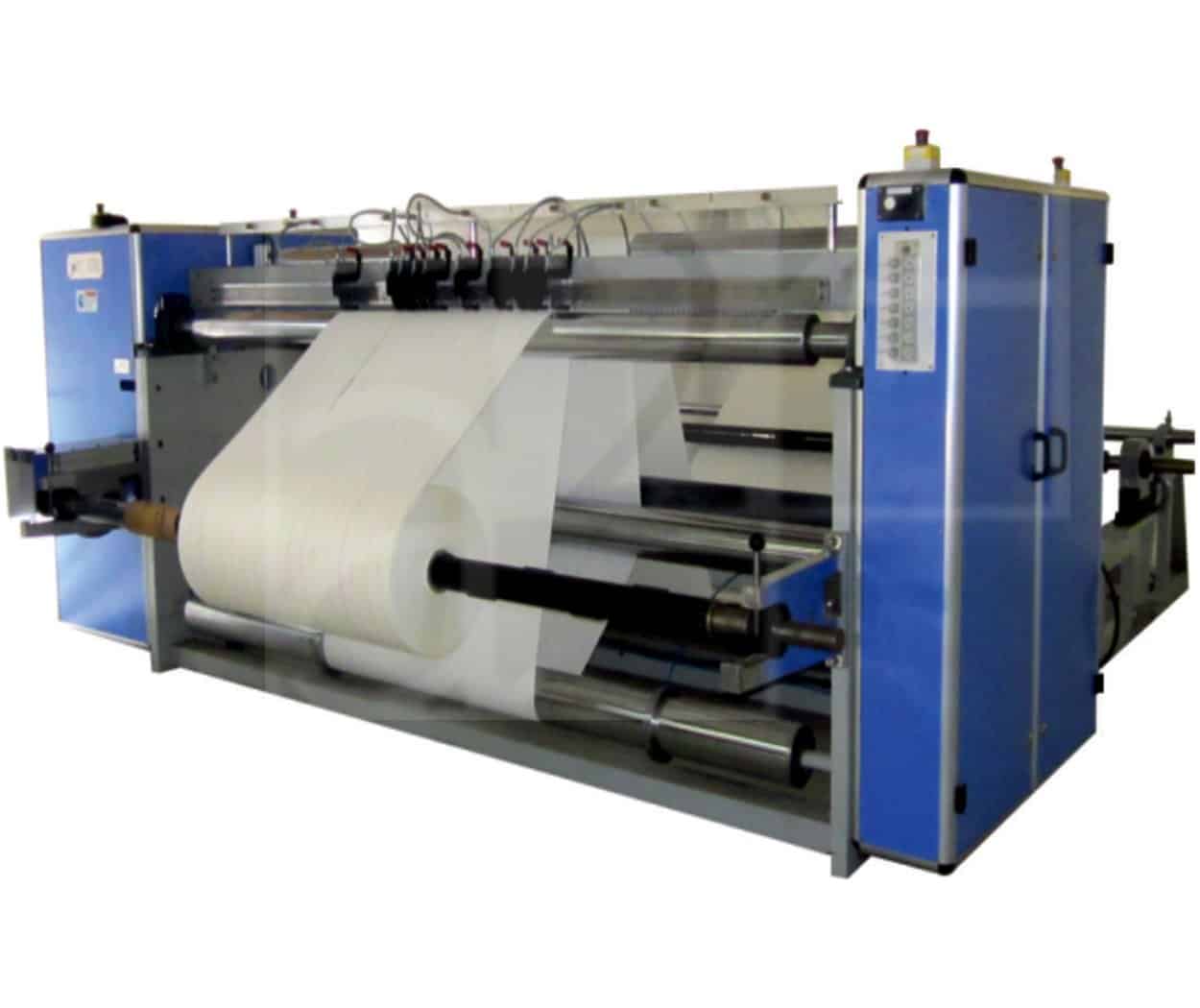

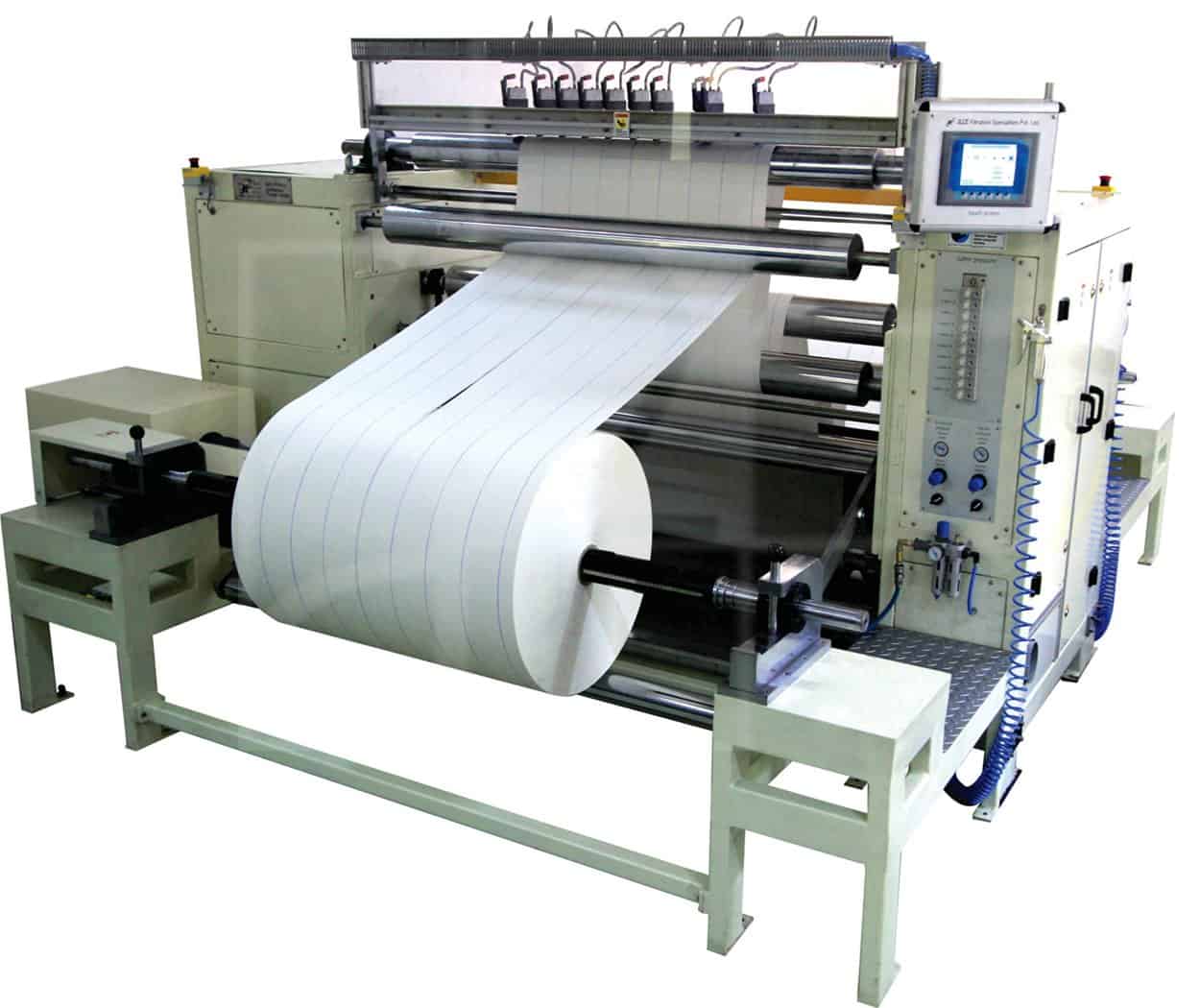

Simplex Slitter Rewinder

There is one Unwind Station and one Rewind Station
Centre rewind system to rewind the substrate. The rewinding rolls are driven from their axis by motor.
Handling is easier
Can do Rewind diameter up to 1200mm
Suitable for Filter Paper, Synthetic media, Glass Wet laid, Melt Blown media
Minimum slit width of rewind roll: 15mm
Core diameter: 70/75/125/150mm
Pneumatic type core holding shaft
Rewind station driven
Pneumatically operated pressure roll on rewind station
Rewind tension control by tension controller
Speed-variable up to 100 meters/minute
Slitters: Crush/Scissor type pneumatically operated
Axial and angular adjustment control of the unwind shaft by a hand wheel
Predetermined digital length counter meter
With Trim removal system or Trim Rewinder (Optional)
Cutters from European suppliers
